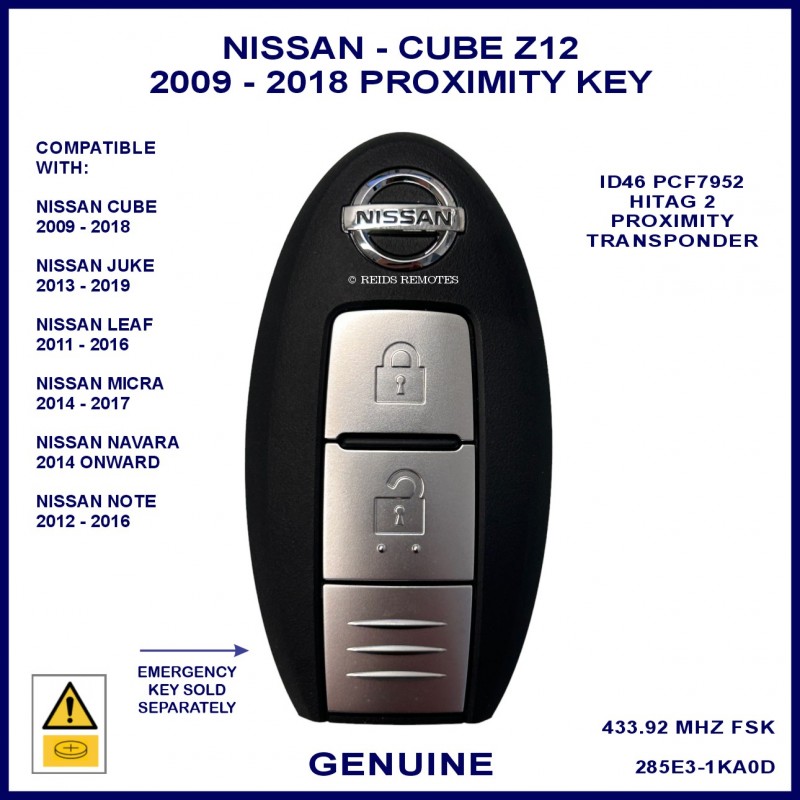

Nissan Cube 3rd gen 2009 - 2018 2 button smart key genuine TWB1G662

285E3-1KA0D (A2 - DIAG)

New product

This genuine Nissan 2 button smart key can be used with a number of models as listed below including Navara, Micra, Juke, Note, Leaf & Cube.

This key can have either genuine part numbers below:

285E3-1KA0D

285E3-1KA9D

Smart key needs to be coded diagnostically - coding is not included in price

A2 - DIAG

More details

$239.95 GST incl.

Shipping Rates

This 2 button genuine Nissan smart remote key or proximity key can be used with the models below.

The transponder and remote can only be coded to the vehicle using specialist diagnostic equipment and this can be done at our workshop or by your local automotive locksmith, some mechanics or auto electricians.

The emergency key is NOT included in the price but the remote comes with a battery already fitted. A compatible emergency key can be purchased under the Compatible items tab.

This key can be used with:

VEHICLE YEAR FROM YEAR TO
NISSAN CUBE - 3RD GEN 2009 2018
NISSAN JUKE 2013 2019
NISSAN LEAF - 1ST GEN 2011 2016
NISSAN MICRA K13 - 4TH GEN 2014 2017
NISSAN NAVARA D23 - 3RD GEN 2014 ONWARD
NISSAN NOTE - 2ND GEN 2012 2016
RENAULT ALASKAN - 1ST GEN 2017 ONWARD

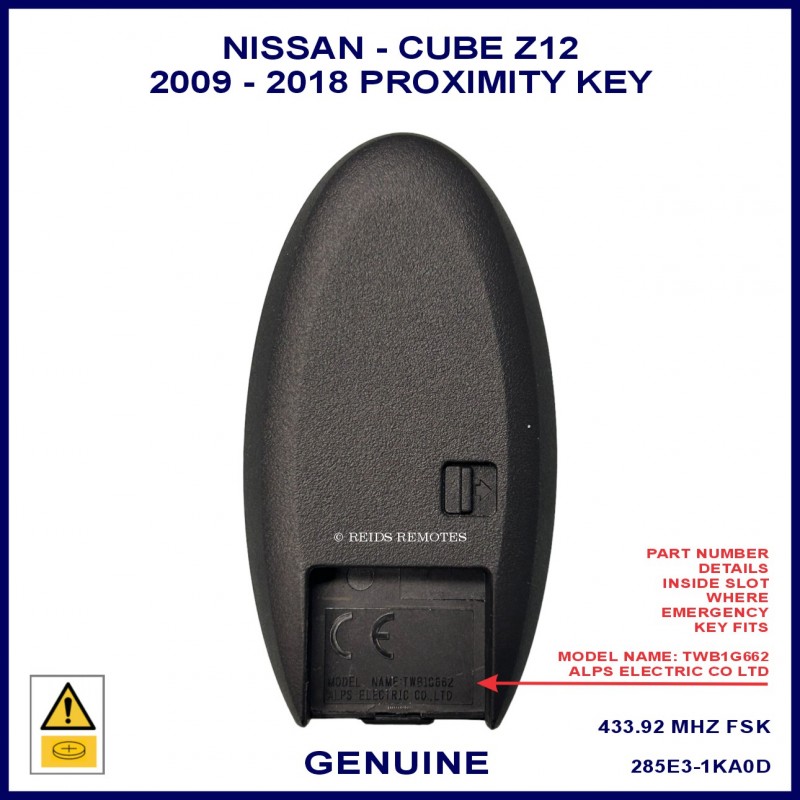

The information in the table ablove is intended as a guide only. To be sure you are choosing the correct smart key, please check the details printed on your current key behind the emergency key. You can remove the emergency key by pushing the release across on the back of the key and sliding out the emergency key.

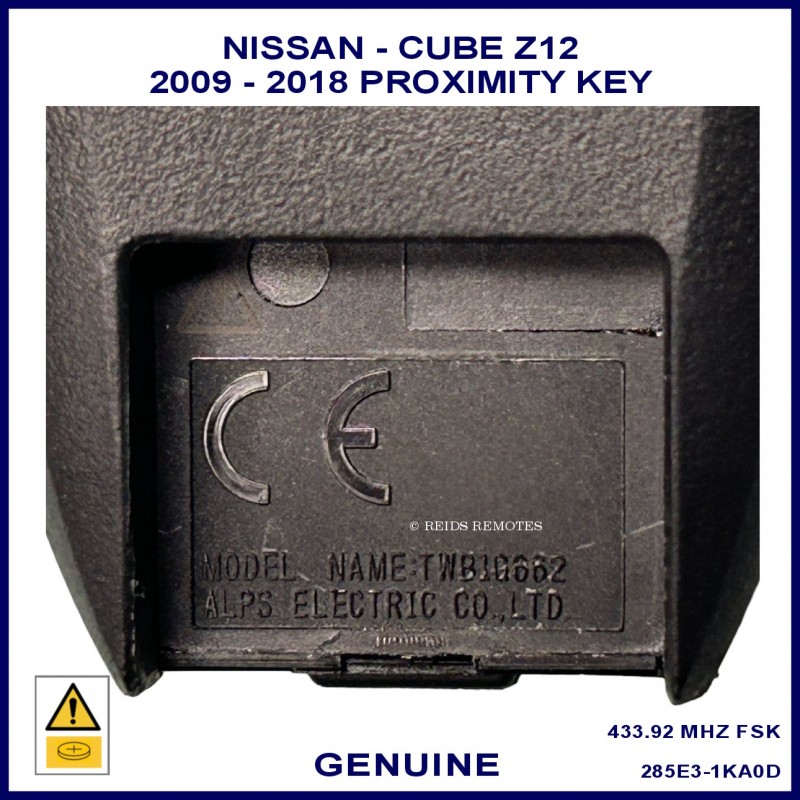

GENUINE NISSAN PART: 285E3-1KA0D will have the following details:

MODEL NAME: TWB1G662

ALPS ELECTRIC CO. LTD

Alternatively you can pop into our store so we can read your existing key to confirm compatibility or send us a photo of the VIN plate from your vehicle and the key details found behind the emergency key.

You will find the FCC ID etc behind this. You can see an example of this in the photos attached.

CHIP: SMART 46 PCF7952 - BLANK CRYPTO MODE TYPE 46

REMOTE: 433 MHz FSK

Emergency Key: NSN14

WARNING! KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing a button cell battery inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.

If you suspect your child has swallowed a button battery or placed inside any part of the body, immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.

Dispose of used button/coin batteries immediately and safely. A battery can still be dangerous even when it can no longer operate the device. Place sticky tape around both sides of the battery and dispose of it immediately out of reach of children in an outside bin or recycle safely.

Please see button battery safety information from the Australian Competition & Consumer Commission (ACCC).

GEN REF: 285E3-1KA0D-

MK REF: MK15220-09748

Frequency 433.92 MHz
No. of Buttons 2 BUTTONS
Shell Colour GREY
Button Colour CHROME
Remote Programming Method DIAGNOSTIC TOOLS REQUIRED
Transponder Programming Method DIAGNOSTIC TOOLS REQUIRED
Dimensions in mm (L x W x D) 73 x 34 x 14
Battery Type CR2032 - 3V
LED Color NO LED
