Hyundai Elantra MD 2010 - 2015 3 button flip key aftermarket

This product has been temporarily removed from sale as direct result of the Consumer Goods (Products Containing Button/Coin Batteries) Safety Standard 2020 which becomes enforceable on 22nd June 2022 and carries fines of up to $1million.

All products that contain a button cell or coin type battery must be safety tested to confirm they comply with these new regulations. All button cell batteries must be in a new type of packaging with new labels.

We are working with all of our suppliers to confirm this compliance before we make the product available for sale again.

We should have had 18 months to get this compliance but sadly the ACCC did not inform our suppliers or us or pretty much any other industry and we only found out about this new law 4 weeks ago.

Please feel free to email us with the details of what you were looking for and we will give you an update on when we expect it to be back available for sale.

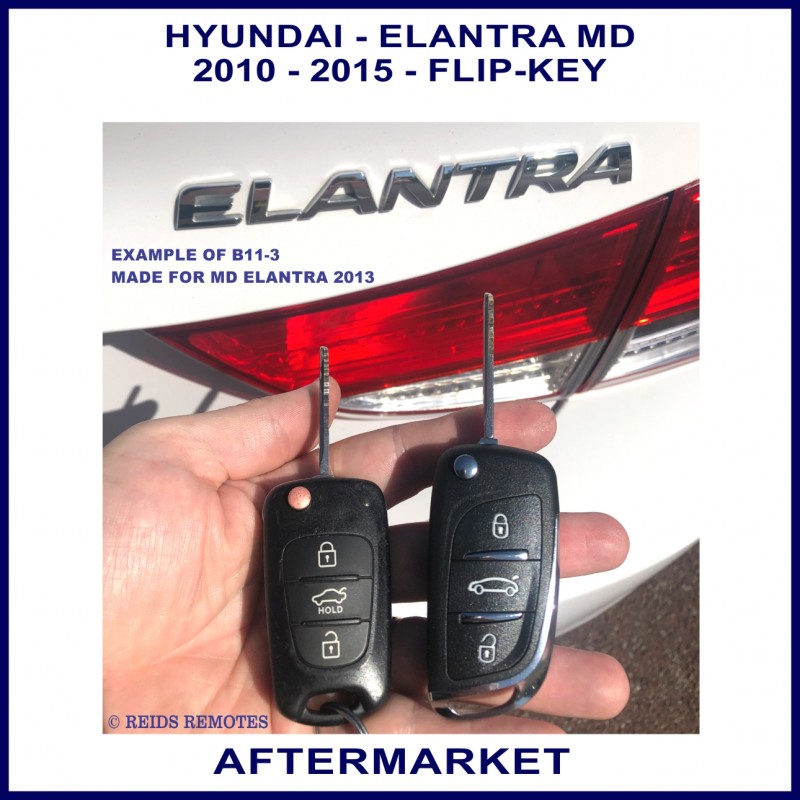

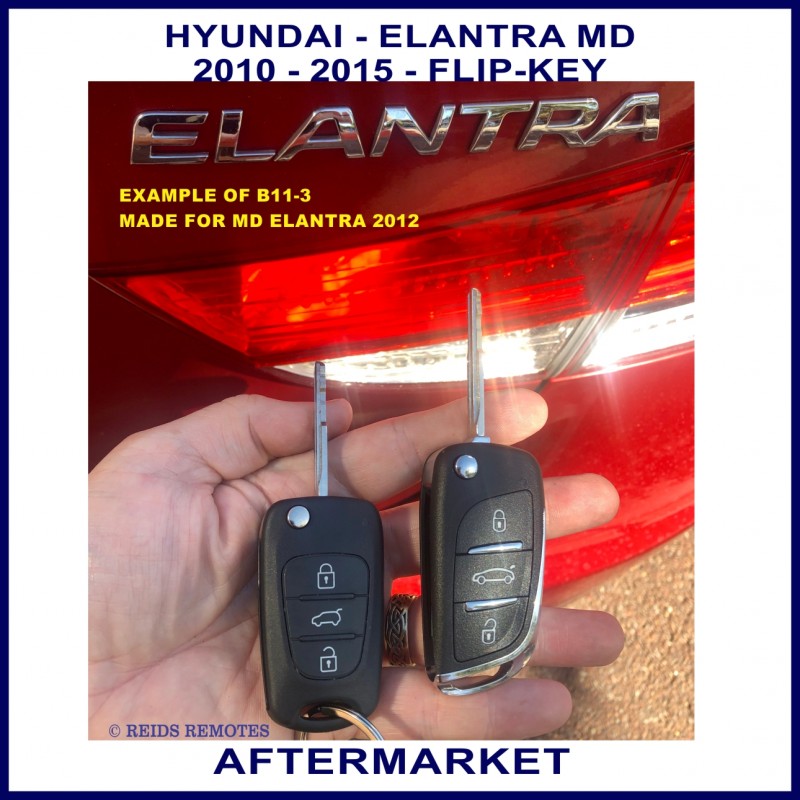

We offer a wide range of styles of aftermarket flip keys. These keys can be encoded to replace a huge list of vehicles.

This listing here is for Hyundai Elantra MD models from 2010 - 2015 using a 3 button flip key where the sticker on the back of the oringial key lists:

OKA-186T/NO32(MD-TP)

NCC: CCAB10LP5480T3

ANA TEL: 3238-10-6672

OMRON AUTOMOTIVE ELECTRONICS KOREA CO. LTD

CE 0682

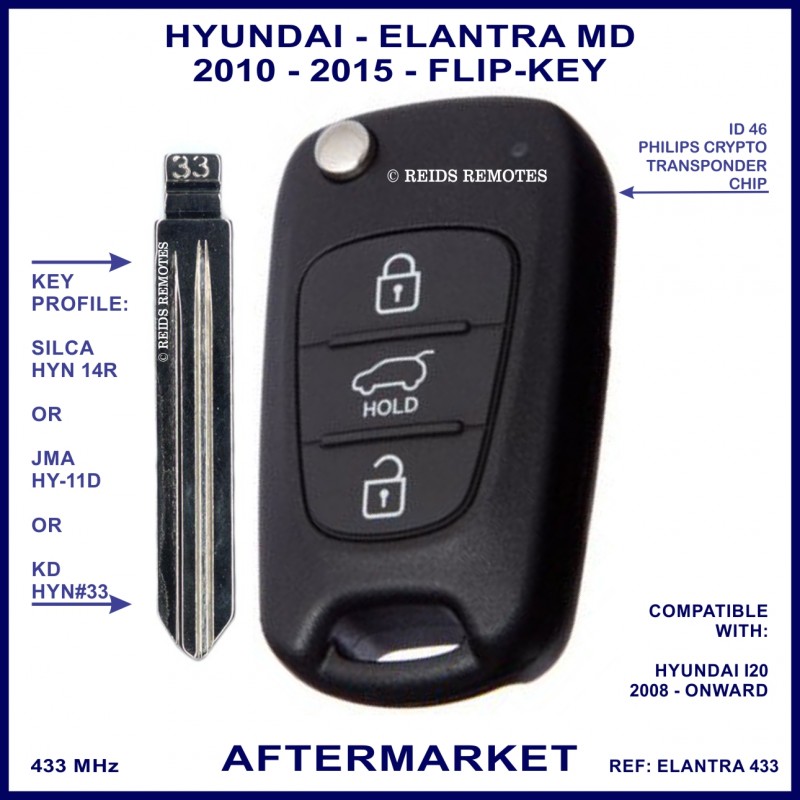

The key blade for this key matches the Silca HYN14R or JMA HY-11D or KD HYN#33 key profile as used with a number of Hyundai & Kia vehicles of this era. See photos for more information on what the key blade looks like.

This key uses an ID46 PHILIPS CRYPTO transponder chip.

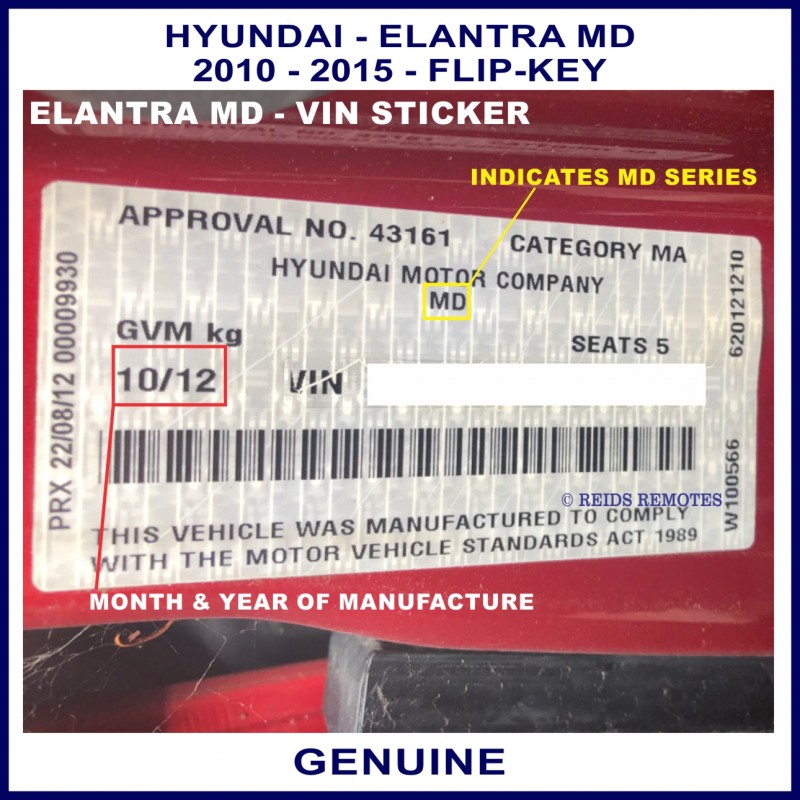

If you are not certain which key you need for your vehicle, please email us a photo of the VIN sticker from the door frame of your car. An example of what the sticker looks like is shown in the photos attached. From this we can advise what you need and which options you have from OEM or aftermarket.

This style of flip key was used on many Hyundai models but the keys can have different circuit boards inside. Even if your key looks identical it may not be same as this one here so please check your vehicle year and model is listed as being correct for this key before you place an order.

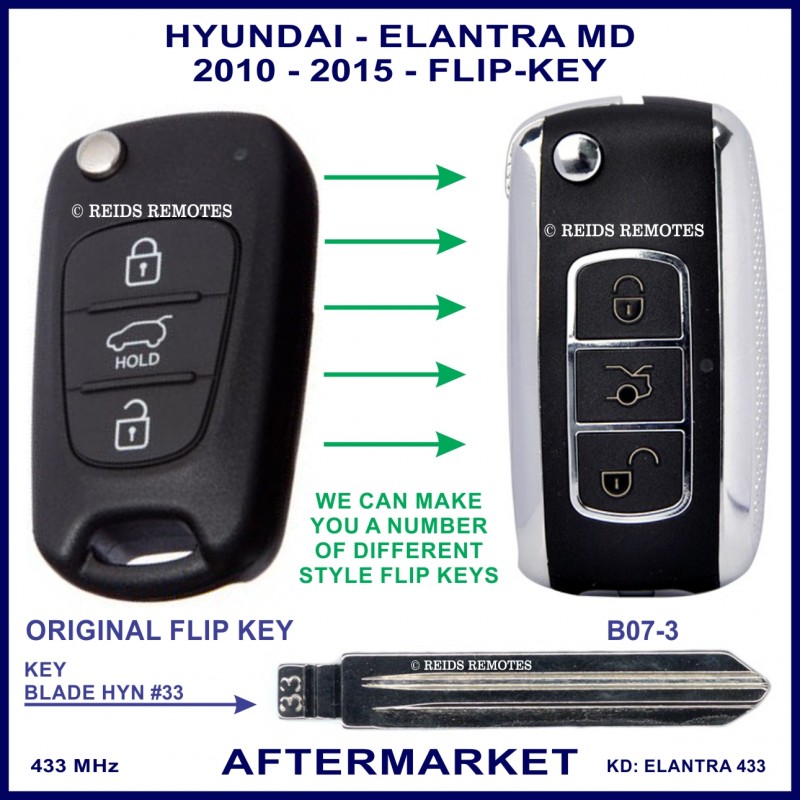

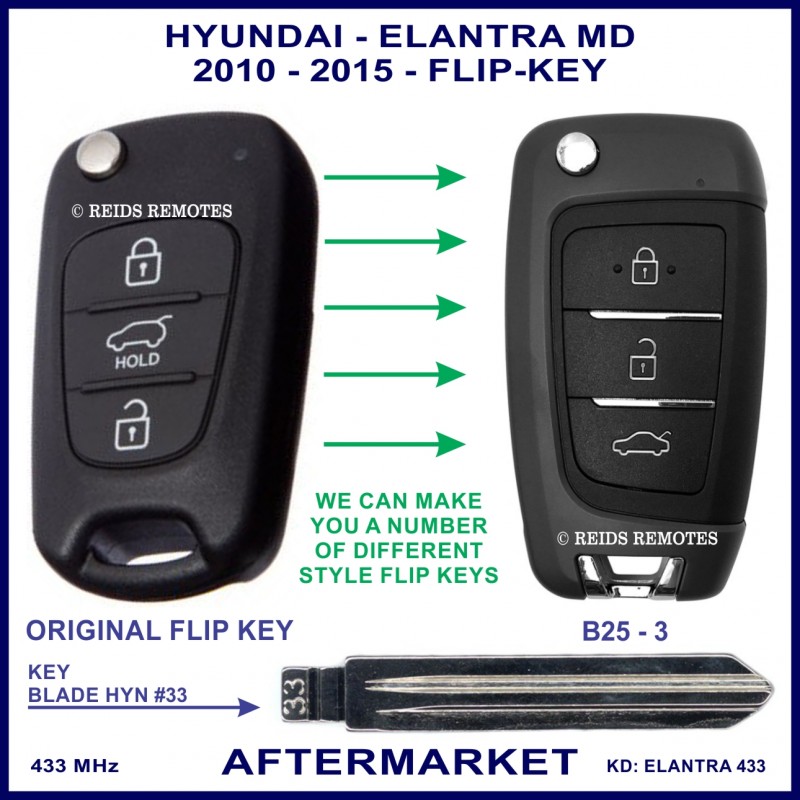

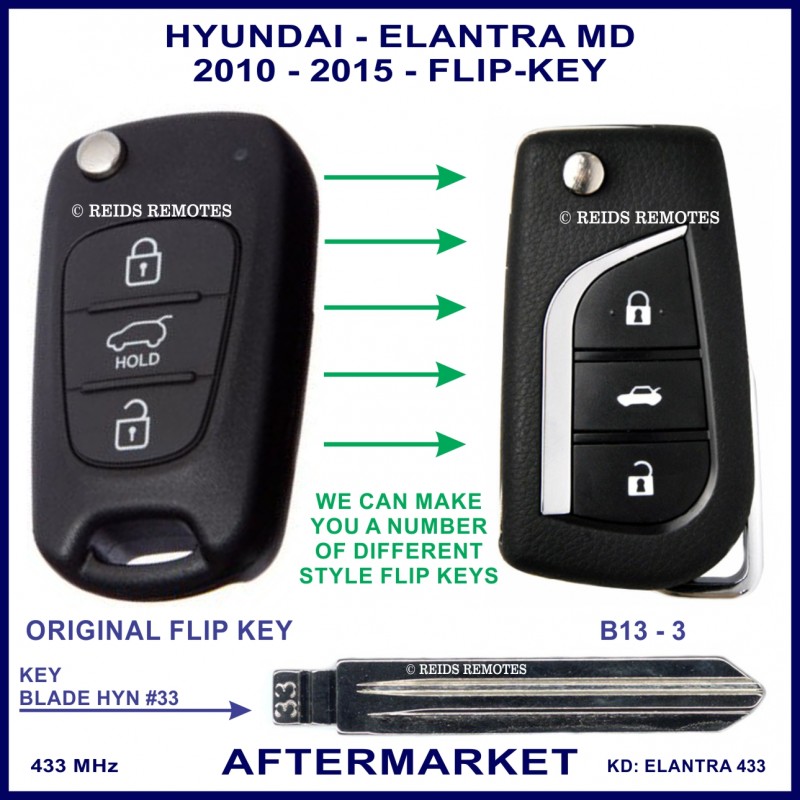

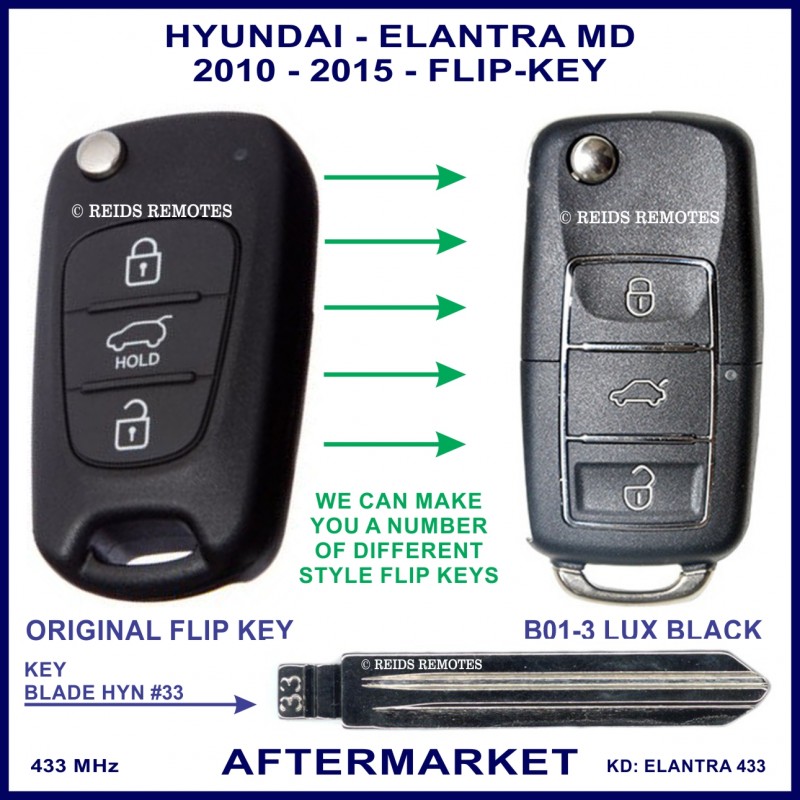

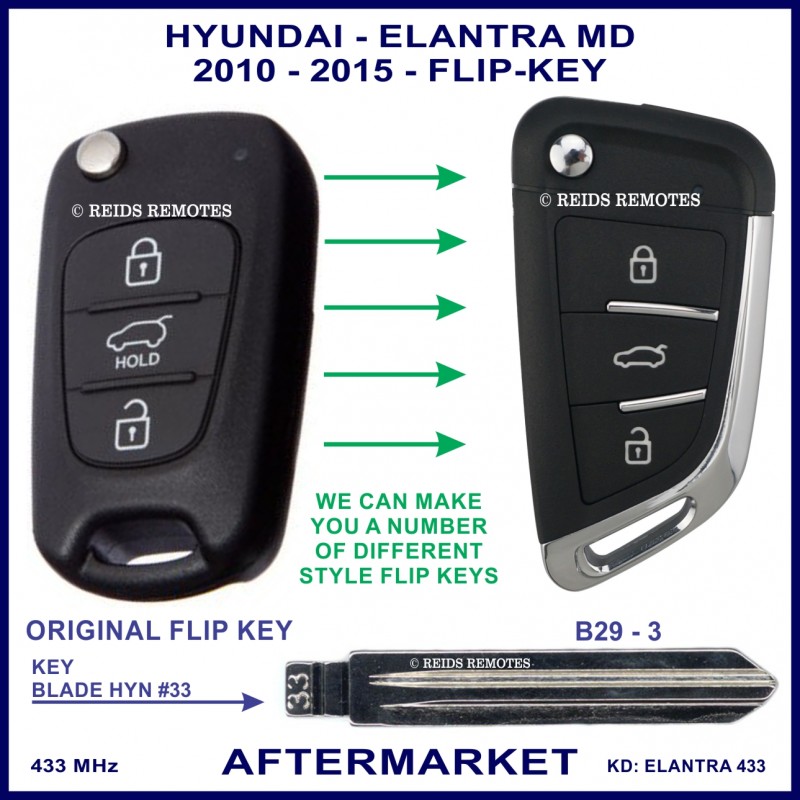

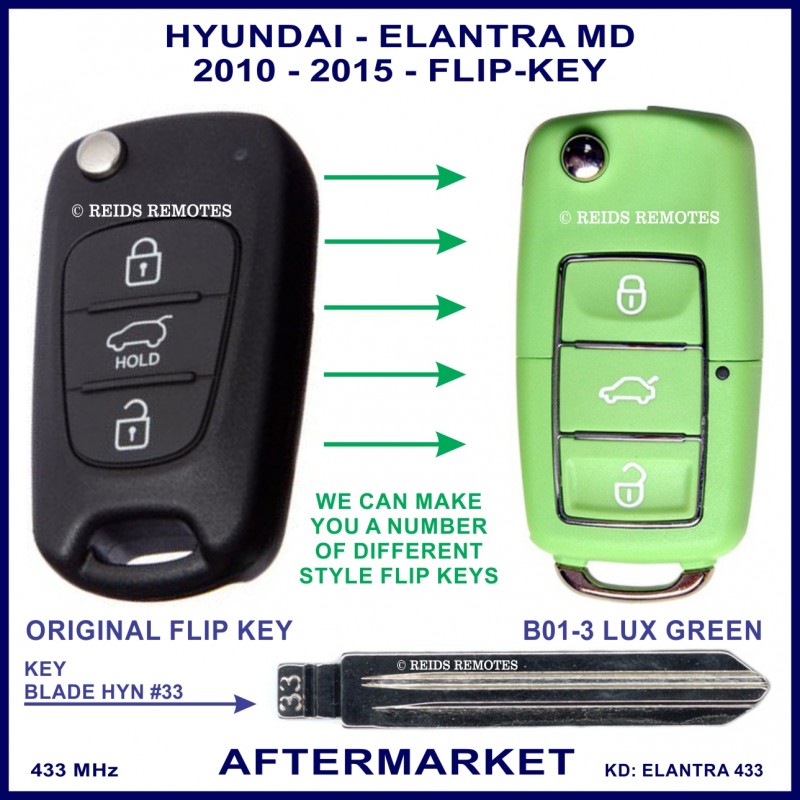

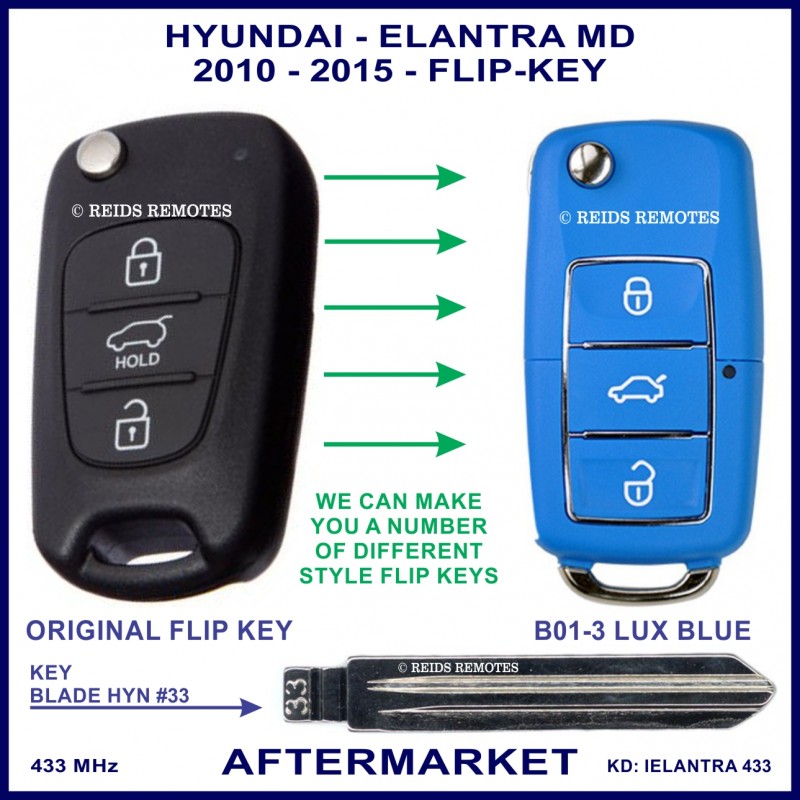

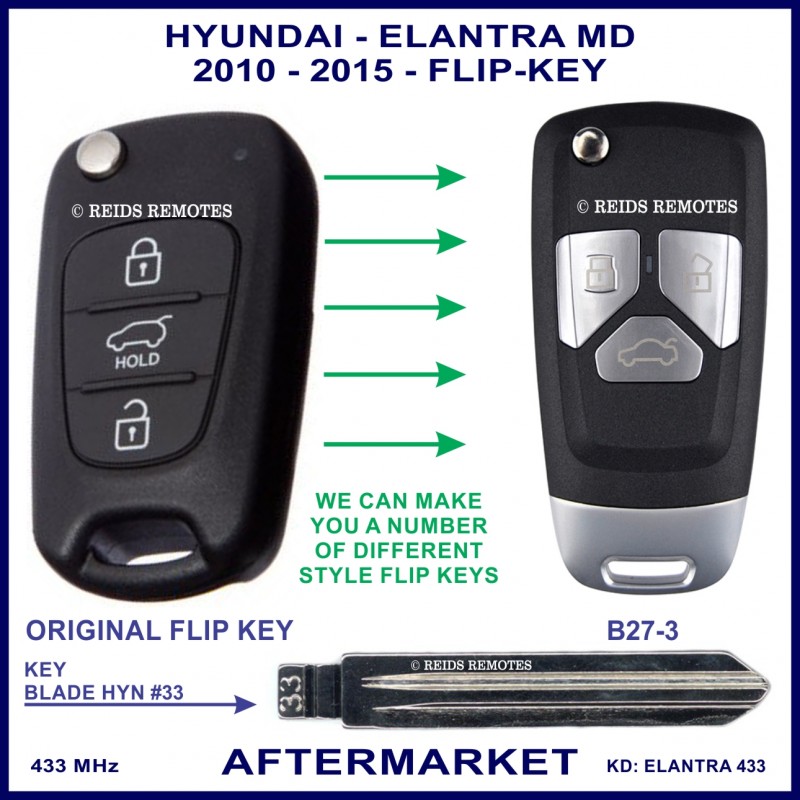

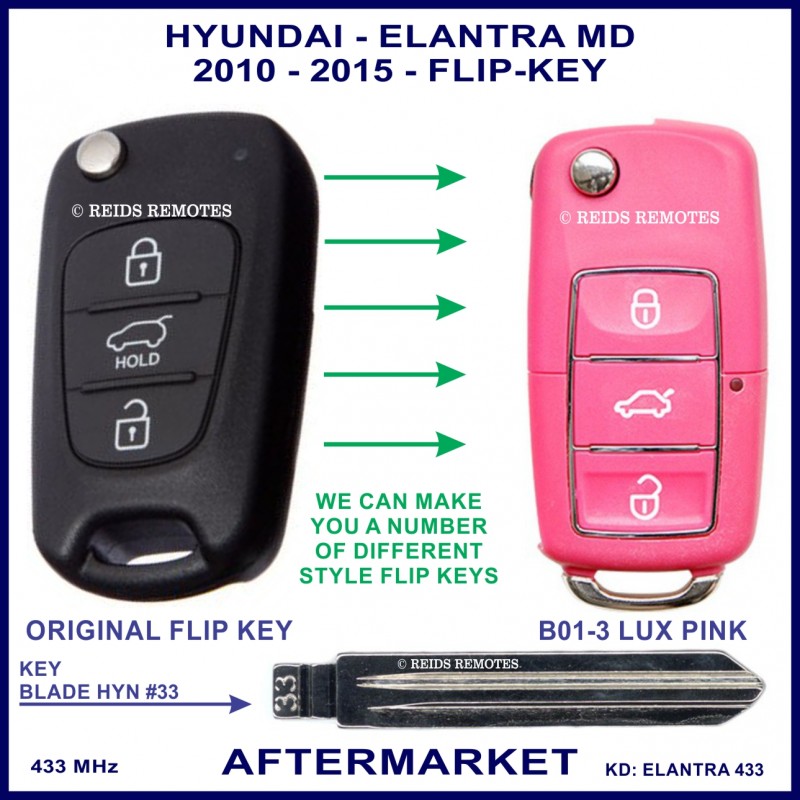

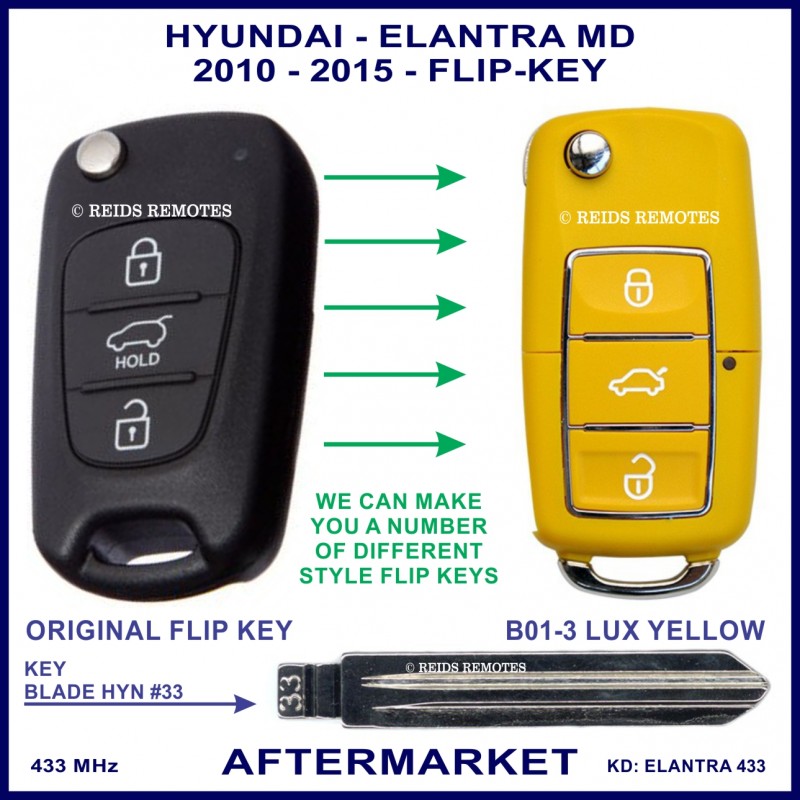

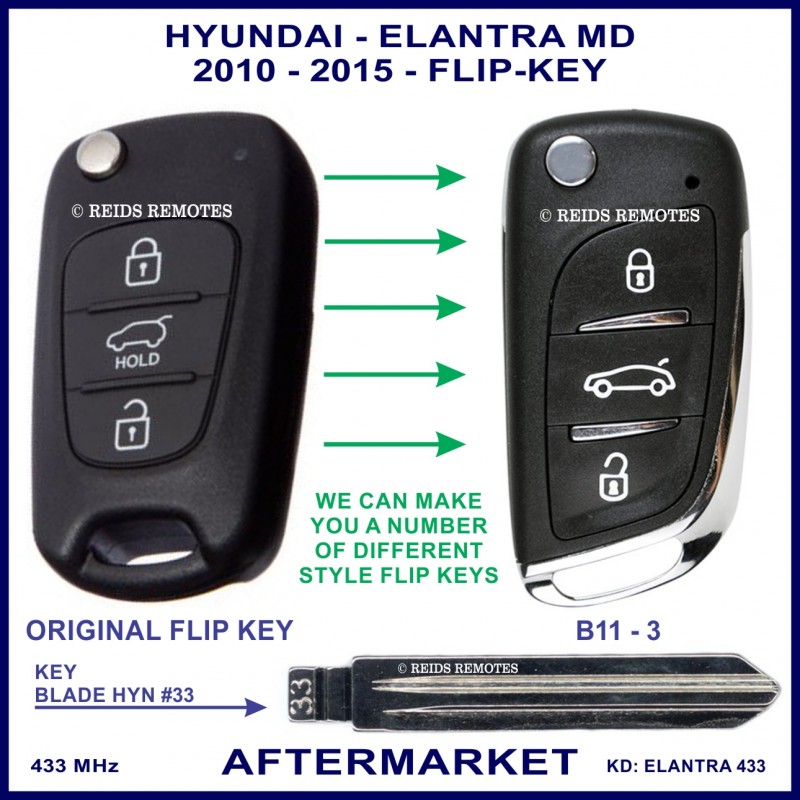

This table below is designed to give you a better idea of the size of the different flip keys. The dimensions and weight do not take into account the key blade, just the body of the flip key at the widest or longest points as some are not rectangular in shape as you will see from the photos. If you have any questions please feel free to get in touch. When you select the model of flip key form the drop down list the photos will update to show you what it looks like and the reference for each style is in the photo just under the flip key.

If the button pad on your original key is damaged or the key shell is broken but the remote still works and the transponder chip is still ok you can just replace either the button pad or the entire shell and use the circuit board and chip from your old key. This is a much cheaper option if that is all you need. You can choose these options under the Compatible Items section on the genuine key page.

This key will need to be cut and coded to your vehicle. This is a pretty straight forward process if you already have a working key but if you have lost your only key this process becomes much more complicated and expensive. It is always advisable to have a spare key, even if the key does not have the remote part as this will save you hundreds of dollars if you lose your flip key.

We can do this cut & code service for you at our shop in East Victoria Park WA or you can have it done by a licensed locksmith close to where you live. The transponder chip and remote can only be coded using diagnostic equipment and so cannot by coded by the user themselves unless you have this specialist equipment.

Please call to make an appointment. We will generally need the vehicle for 30 - 45 minutes at most.

GEN REF - 95430-3X100

KD REF: HY1ELANTRA
