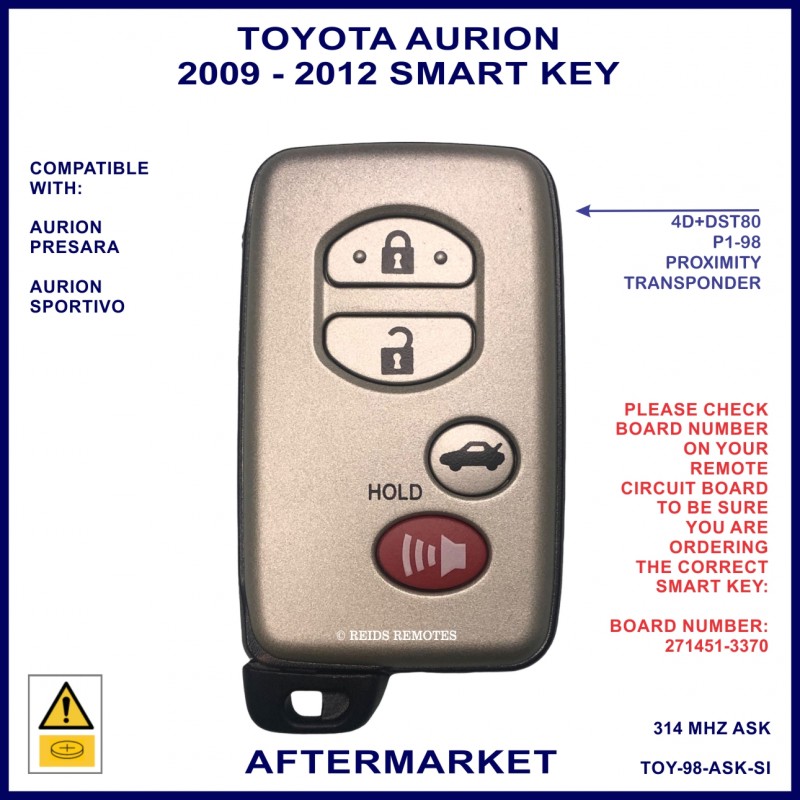

Toyota Aurion 2009 - 2012 4 button smart proximity key 314 MHz ASK 4D 80 bit

SK-TOY-98-ASK-SI (A20 - DIAG)

New product

This aftermarkey 4 button smart proximity key is used with Toyota Aurion models from 2009 - 2012 where the circuit board number is 271451-3370

This one has a 4D DST80 P1-98 transponder chip and 314.3 MHz ASK remote type.

REMOTE ONLY - KEY CUTTING & CODING IS EXTRA

A20 - DIAG

More details

$295.00 GST incl.

Shipping Rates

This high quality aftermarket or non-oem smart key remote is compatible with a number of Toyota Aurion models including:

TOYOTA MODEL YEAR FROM  YEAR TO
AURION PRESARA GSV40R 2009 2012
AURION SPORTIVO GSV40R 2009 2012

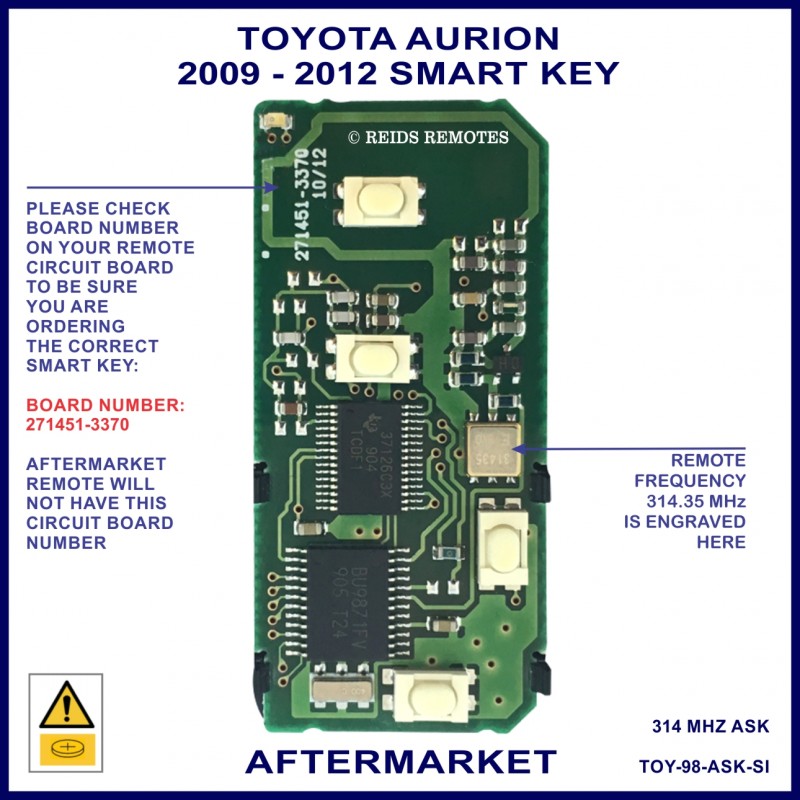

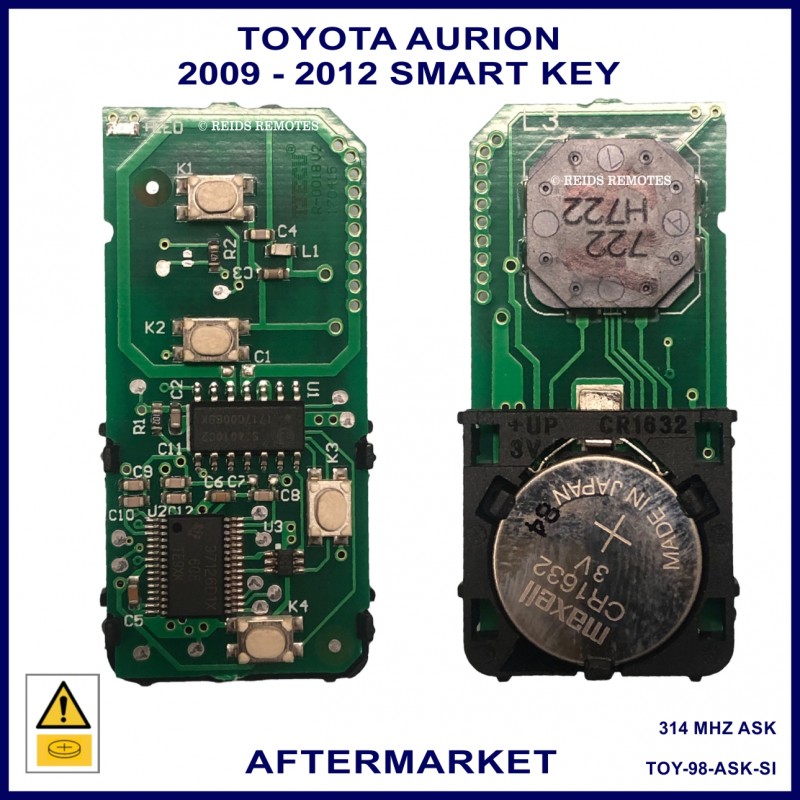

This vehicle list is intended as a guide only. The most accurate method to identify your current key is by opening the remote case and reading circuit board number as shown in the attached photos. In this case it should be 271451-3370

You can also come into our shop and we will scan the frequency of the remote and identify the transponder chip for you. If you are not near by you can send us a photo of the front and back of the circuit board in your current smart key and we will assist you to identify the correct replacement.

This type of smart key is also sometimes referred to as a proximity key or prox key as it allows you to enter the vehicle and start the vehicle without having to press the remote or put it in a slot or put a key in the ignition. This system is often referred to as keyless start.

This type of smart key can only be coded to your vehicle using specialist diagnostic tools by a licensed locksmith or vehicle repairer. We can code the smart key and cut your key in our shop in East Victoria Park WA or you can have it done locally to where you live.

We charge $90 to code this type of smart key. You will need to call to make an appointment.

Coding a spare key when you have a working key is not a huge job but if you lose your only key and then need a key made and coded this becomes a much larger and far more expensive proposition. We strongly reccomend you always have a spare key for your Toyota vehicles, especially those using a smart proximity key.

SG REF: SK-TOY-98-ASK-SI-16790

AK REF: TRK-TOY-30-3370-10910

GEN REF: 89904-33310

WARNING! KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing a button cell battery inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.

If you suspect your child has swallowed a button battery or placed inside any part of the body, immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.

Dispose of used button/coin batteries immediately and safely. A battery can still be dangerous even when it can no longer operate the device. Place sticky tape around both sides of the battery and dispose of it immediately out of reach of children in an outside bin or recycle safely.

Please see button battery safety information from the Australian Competition & Consumer Commission (ACCC).

Frequency 314mhz
No. of Buttons 3 BUTTONS + PANIC BUTTON
Shell Colour SILVER
Button Colour 3 X SILVER 1 X RED
Remote Programming Method DIAGNOSTIC TOOLS REQUIRED
Transponder Programming Method DIAGNOSTIC TOOLS REQUIRED
Dimensions in mm (L x W x D) 61 X 38 X 16
Battery Type CR1632 - 3V
LED Color NO LED
  • $8.95 In Stock

    CR1632 is a 3 Volt battery and measures 16 mm x 16 mm x 3.2 mm Remote controls for garage doors, swing & sliding gates, home security systems, car alarms, central locking systems use lithium batteries. It is vital to select the correct battery both for fit and function of the device. One of, if not the most reliable lithium battery on the market is...

    $8.95
    In Stock
  • $11.95 In Stock

    This emergency key blade can be used with a large number of Toyota Smart keys. It is double sided and is on the Silca TOY48 or JMA TOY30 profile as you will see in the photos A26

    $11.95
    In Stock
  • $90.00 In Stock

    This service is to cut and program a key we are supplying to your vehicle. We do this for you at our workshop in East Victoria Park W.A. THE VEHICLE MUST BE HERE FOR US TO DO THIS SERVICE - IF YOU DO NOT LIVE IN PERTH YOU CAN PURCHASE A KEY OR REMOTE FROM US AND HAVE IT PROGRAMMED LOCALLY WHERE YOU LIVE

    $90.00
    In Stock
  • $19.95 In Stock

    This aftermarket 3+1 button silver smart key case can be used to replace your damaged Toyota smart key outer casing. Front and back parts of the shell only as shown in the photos. Emergency key blade sold separately REMOTE SHELL ONLY - NO ELECTRONICS INCLUDED S53

    $19.95
    In Stock
