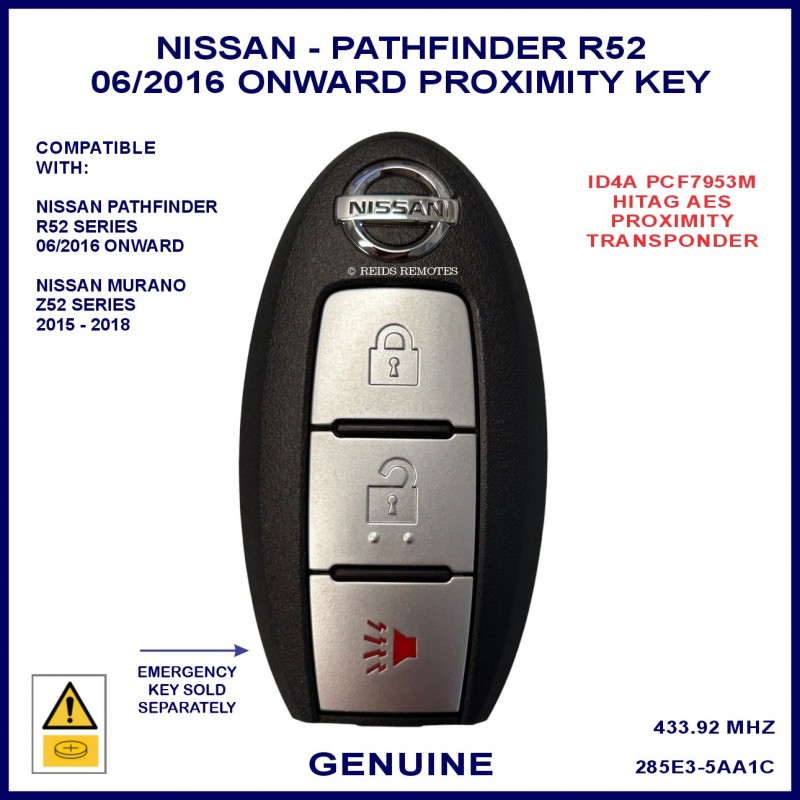

Nissan Pathfinder R52 06-2016 onward - 3 button 285E3-5AA1C smart proximity key genuine S180144304

This 3 button genuine Nissan smart proximity remote key or proximity key can be used with the models below. The transponder and remote can only be coded to the vehicle using specialist diagnostic equipment and this can be done in our workshop or by your local automotive locksmith, some mechanics or auto electricians.

This remote features a LOCK - UNLOCK & PANIC button.

Genuine Nissan smart proximity keys are sold without an emergency key. You can purchase one from the compatible items tab.

This smart proximity key can be used with:

Models shown in the list above as a guide only, please check that the key you have now matches the part information below:

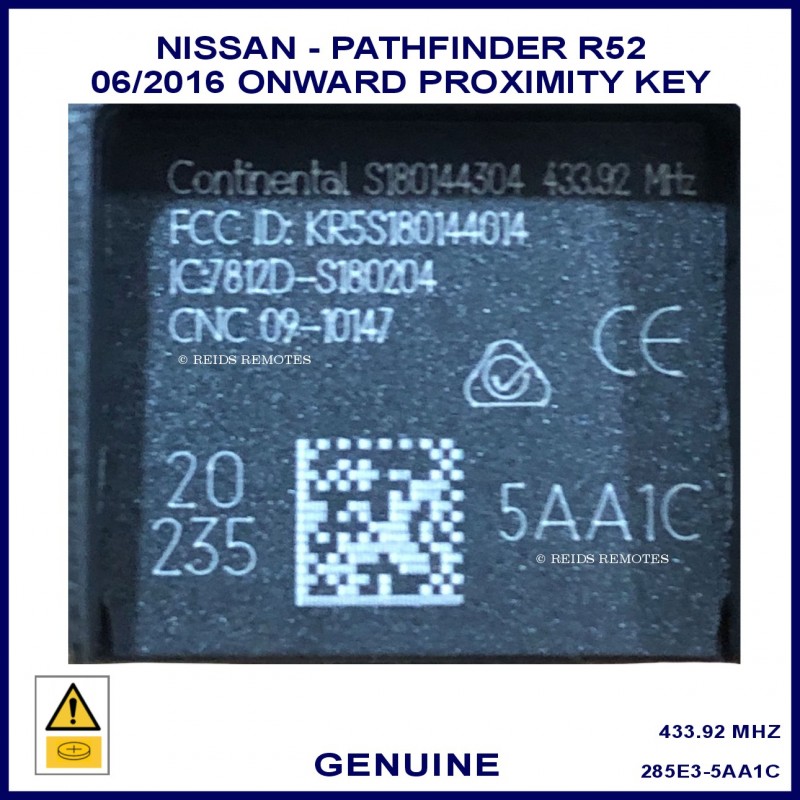

Continental S180144304 433.92 MHz

FCC ID: KR5S180144014

IC: 7812D-S180204

Your key will also have other numbers etc in this area but the ones above are what must match to ensure it is compatible with this key. The print on the genuine Nissan key is very small so you will need a magnifying glass to be able to read it.

If you are not sure you can always just pop into our store so we can read your existing key to confirm compatibility.

If you are not in Perth you can send us a photo of the VIN plate from your vehicle and the key details found behind the emergency key.

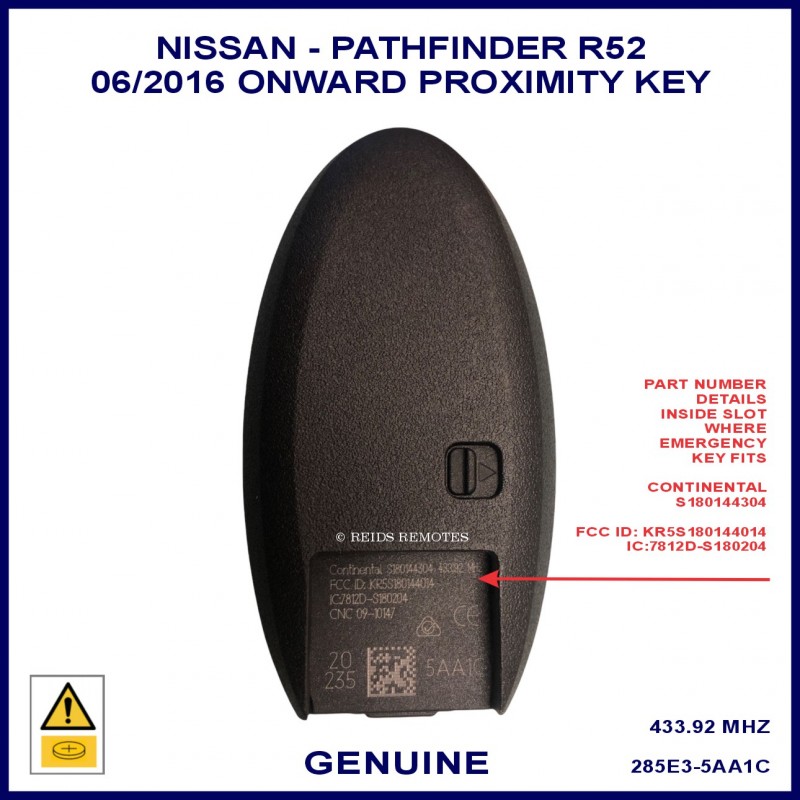

You can remove the emergency key by pushing the release across on the back of the key and sliding out the emergency key. You will find the FCC ID etc behind this. You can see an example of this in the photos attached.

CHIP: ID4A PCF7953M HITAG-AES

REMOTE: 433 MHz FSK

Emergency Key: NSN14

THIS KEY CAN ONLY BE PROGRAMMED TO THE VEHICLE USING A DIAGNOSTIC SCAN TOOL - WE ARE LICENSED TO DO THIS

WARNING! KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing a button cell battery inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.

If you suspect your child has swallowed a button battery or placed inside any part of the body, immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.

Dispose of used button/coin batteries immediately and safely. A battery can still be dangerous even when it can no longer operate the device. Place sticky tape around both sides of the battery and dispose of it immediately out of reach of children in an outside bin or recycle safely.

Please see button battery safety information from the Australian Competition & Consumer Commission (ACCC).

GEN REF: 285E3-5AA1C-32657

MK REF: MK5257-09624
