M802-SMALL (G51 - P33)
The Merlin M-802 remote operates on 40Mhz and is distinctive with its large blue button. It is also quite large and so here we have a smller replacement for the bulky M802.

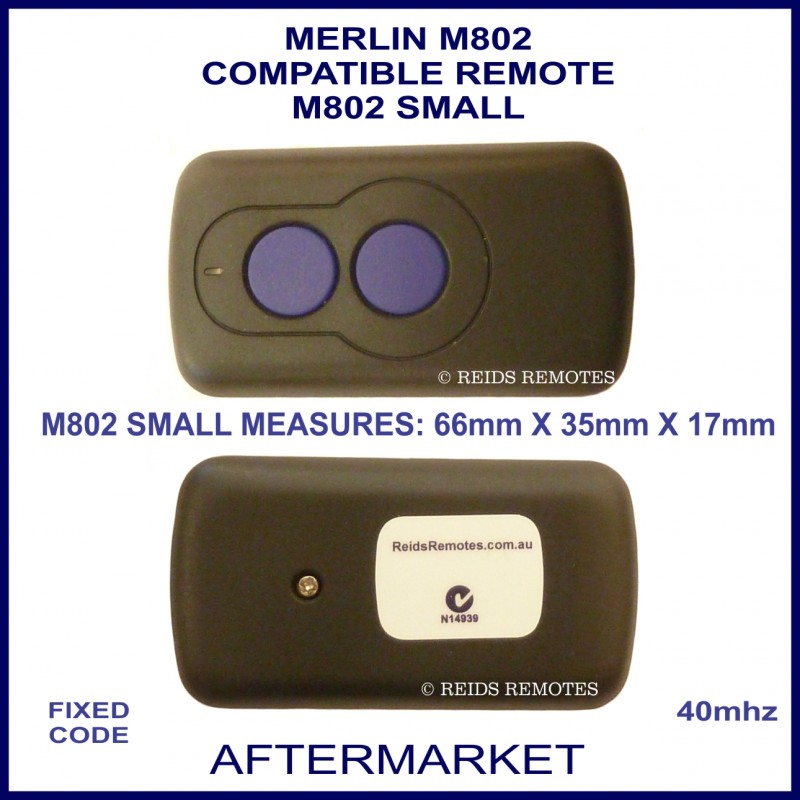

The M802 small measures just 66 mm x 35 mm x 17 mm
G51 - P33
Warning: Last items in stock!
The M802 small is compatible with Merlin openers fitted between 1994 and 2001 using the 12 dip switch fixed code technology including:
MERLIN PROLIFT M230T
MERLIFT PROLIFT 430R
MERLIN POWERLIFT 2600P
It can also be used with gate openers fitted with M-500, M-501 and M-502 receiver cards.

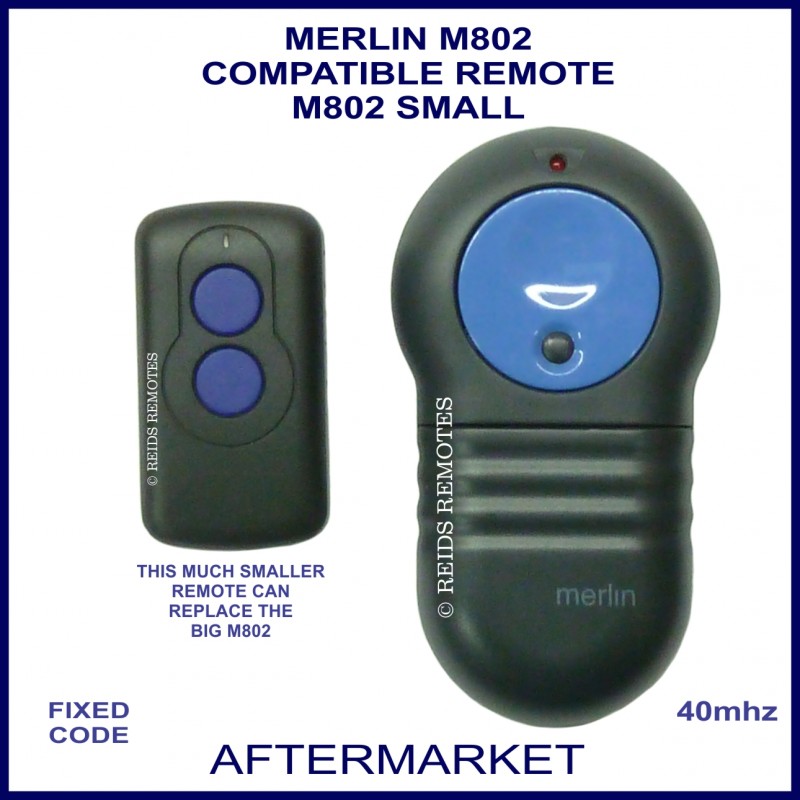

This much smaller remote has the added benefit of being small enough to fit on your keys or in your pocket or handbag muche easier than the large original Merlin M802 which is really more suited as a wall remote or attached to the sun visor in your car.
The M802 small still has quite a large button making it easy to use and features the same type of transmitter which because it transmits on 40 MHz which is a frequency not used very much any more it does not suffer the problems of interference or digital noise which effects many remote controls using higher frequencies such as 433 MHz used by the majority of garage and gate controls.
This small remote uses a GP Ultra 23AE 12 volt battery which gives good longevity and a strong transmission strength.

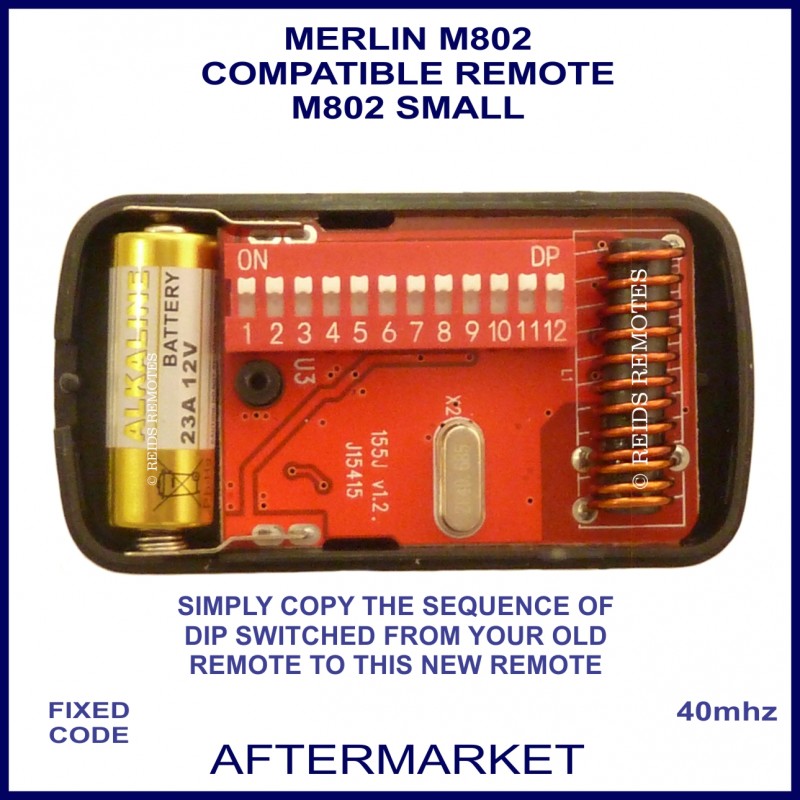

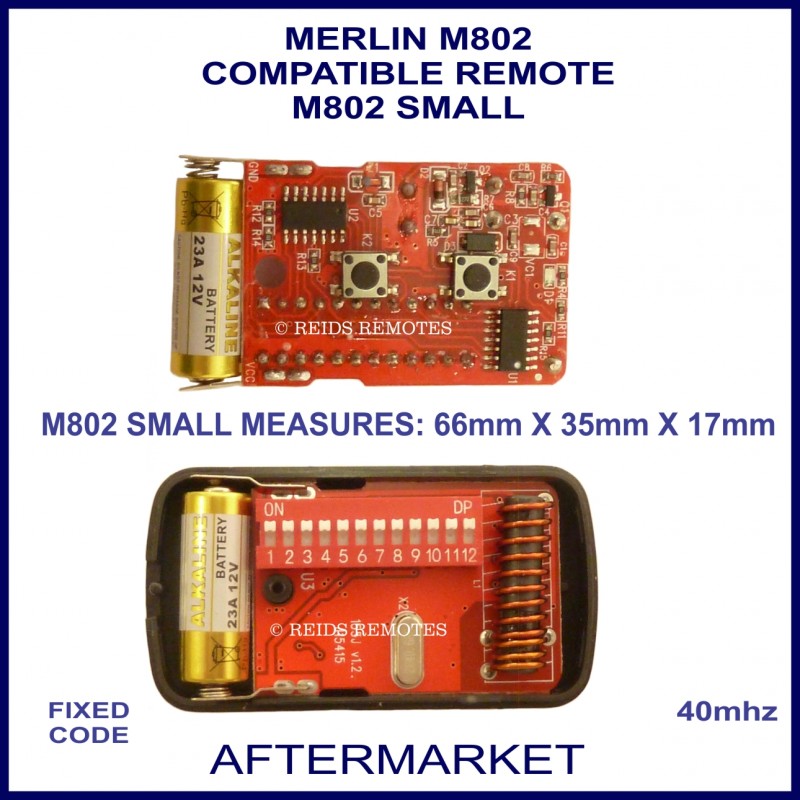

It is easy to program, simply copy the pattern of the 12 dip switches on the new remote to the pattern of the switches in your old working remote and you are up and running.
If you do not have a remote you can also find the dip switches on the motor and so you can copy this pattern to your remote. Also if you lose or have a remote stolen, you can change the dip switches on both the motor and remotes to a new matching sequence and the lost or stolen remote will no longer work with your motor, preventing it from being used to get into your home.

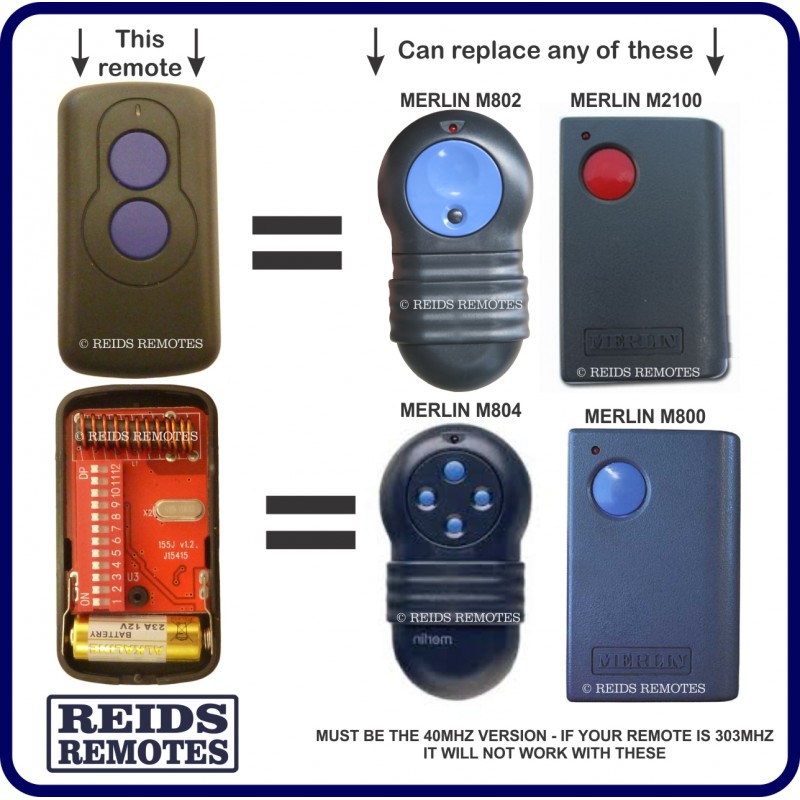

Take a look at the photos to see which other remotes are compatible with this one.
If you are not certain that the remote you have is compatible please feel free to email us a photo of the remote and your motor and we will be more than happy to help you work out which remote to purchase.
All our remotes are supplied with easy to follow instructions on how to program them to your garage or gate motor. To ensure you get the most appropriate instructions please tell us the model of the motor you are going to use the remote with in the comment section of the checkout.
We offer a 12 Month Warranty on all genuine remotes in line with the manufacturer conditions, so you can buy your new remote with full peace of mind and confidence that should there be a problem you are covered.
If you have any issues during programming please call us and we will talk you through it. We can also come and program your new remote anywhere across the Perth metro area just select Deliver and Program as your preferred delivery method at Checkout.
|No. of Buttons||2 BUTTONS|
|Remote Programming Method||PROGRAM WITH DIP SWITCHES|
|Encryption Type||FIXED CODE|
|Visor Clip Included||YES - INCLUDED|
|Dimensions in mm (L x W x D)||66 x 35 x 17|
|Battery Type||23AE - 12V|
The Merlin M-802 remote operates on 40Mhz and is distinctive with its large blue button. This remote can be used to replace the older rectangular remotes with the single round red button (M2100) or blue button (M800) as shown in the images. This blue remote is NOT compatible with any of the Merlin green remotes even though they look similar. W1 - P33 - INCL
This 23A 12 volt alkaline battery from GP High Voltage is used extensively in remote controls for garage door, swing & sliding gates, home security systems, car alarms, central locking and much more. One of, if not the most reliable 23A battery on the market GP is a very well respected brand. Other matching codes include: 23AE, A23, V23GA & MN21
