M802 (W1 - P33)

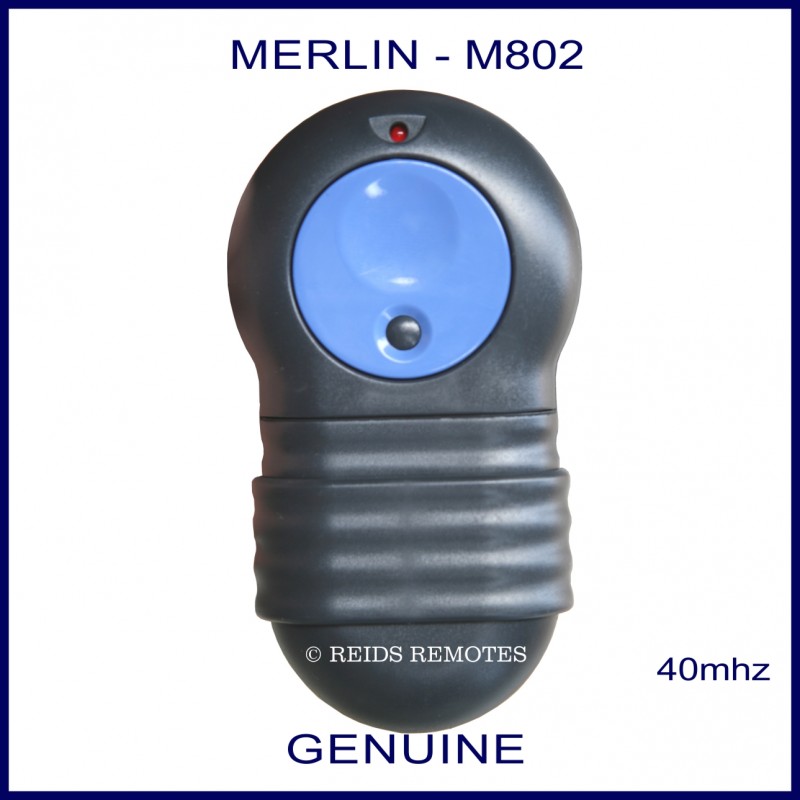

The Merlin M-802 remote operates on 40Mhz and is distinctive with its large blue button.
This remote can be used to replace the older rectangular remotes with the single round red button (M2100) or blue button (M800) as shown in the images.
This blue remote is NOT compatible with any of the Merlin green remotes even though they look similar.
W1 - P33 - INCL
Warning: Last items in stock!
Compatible with Merlin openers fitted between 1994 and 2001 using the fixed code technology including:
MERLIN PROLIFT M230T
MERLIFT PROLIFT 430R
MERLIN POWERLIFT 2600P
It can also be used with gate openers fitted with M-500, M-501 and M-502 receiver cards.
Having a larger button such as the M802 can be a real benefit when used in a vehicle as it is much easier to hit the button being so large. This older technology using 40 MHz means there is much less interference on this frequency and so it often delivers a better response and better range.
There are some drawbacks of course to the large remote and this is why we also sell the M802 small which can be attached to your keys as it is much smaller. The transmitter in this older type remote as you will see in the photo using a copper coil wrapped around a large magnet. You must take care to not drop these remotes as any damage to the magnet will stop the remote from transmitting correctly.

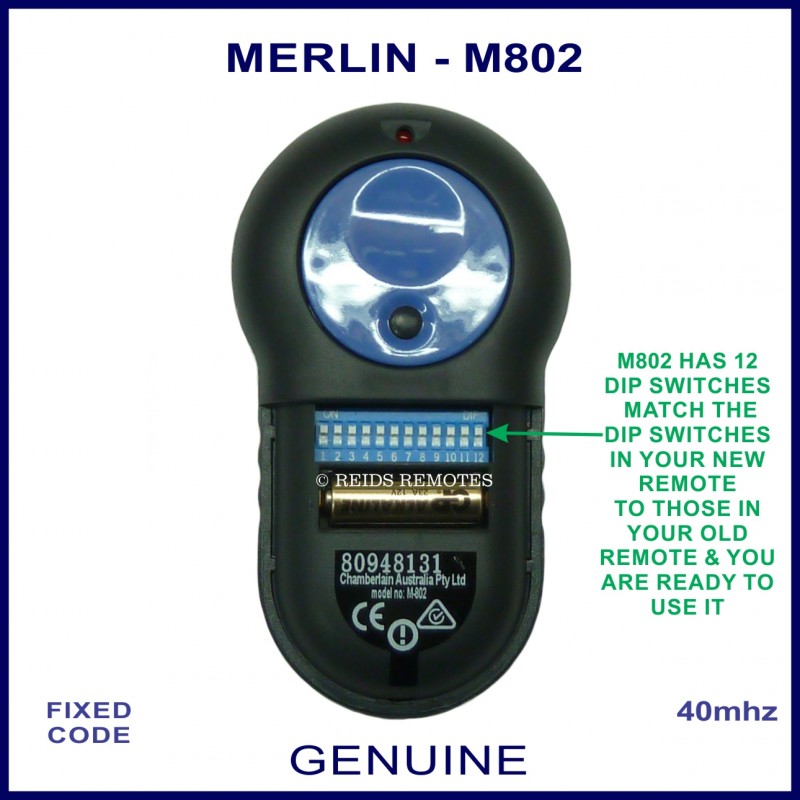

It is easy to program this remote, simply copy the pattern of the 12 dip switches on the new remote to the pattern of the switches in your old working remote and you are up and running.
If you do not have a remote you can also find the dip switches on the motor and so you can copy this pattern to your remote. Also if you lose or have a remote stolen, you can change the dip switches on both the motor and remotes to a new matching sequence and the lost or stolen remote will no longer work with your motor, preventing it from being used to get into your home.

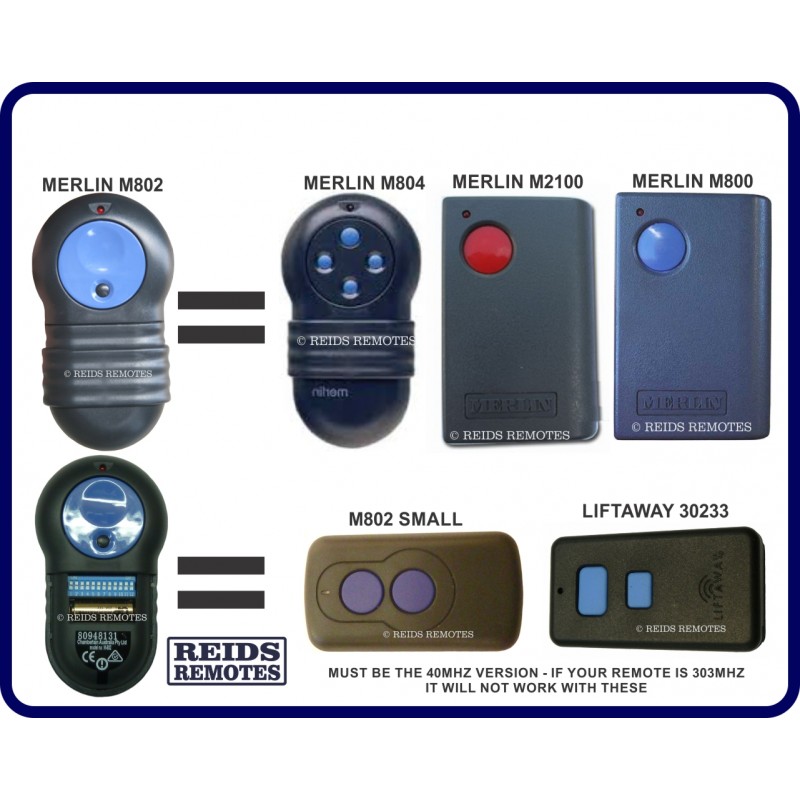

Take a look at the photos to see which other remotes are compatible with this one.
If you are not certain that the remote you have is compatible please feel free to email us a photo of the remote and your motor and we will be more than happy to help you work out which remote to purchase.
All our remotes are supplied with easy to follow instructions on how to program them to your garage or gate motor. To ensure you get the most appropriate instructions please tell us the model of the motor you are going to use the remote with in the comment section of the checkout.
We offer a 12 Month Warranty on all genuine remotes in line with the manufacturer conditions, so you can buy your new remote with full peace of mind and confidence that should there be a problem you are covered.
If you have any issues during programming please call us and we will talk you through it. We can also come and program your new remote anywhere across the Perth metro area just select Deliver and Program as your preferred delivery method at Checkout.
|No. of Buttons||2 BUTTONS|
|Remote Programming Method||PROGRAM WITH DIP SWITCHES|
|Encryption Type||FIXED CODE|

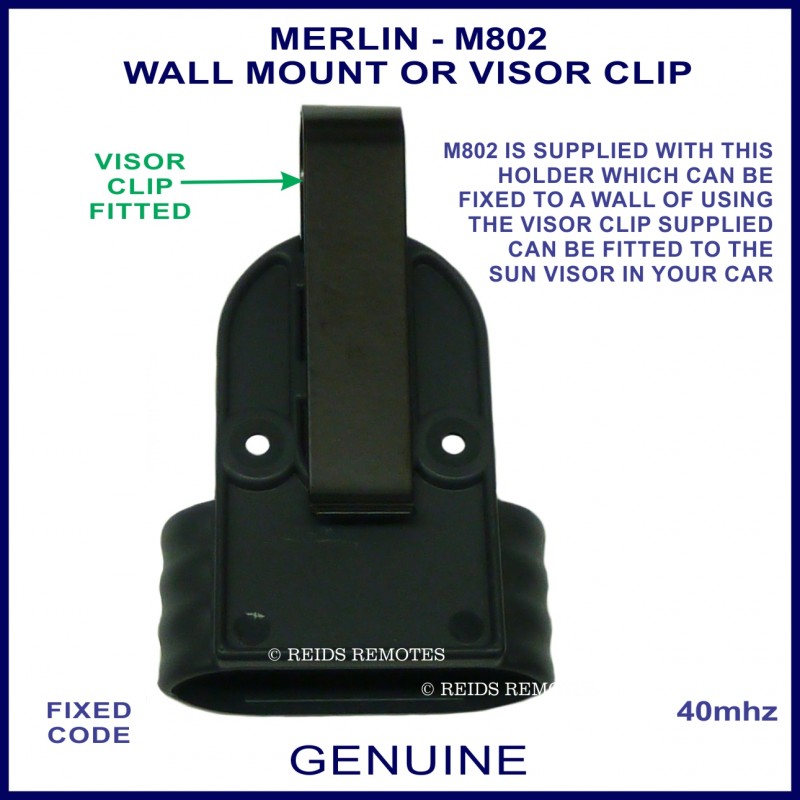

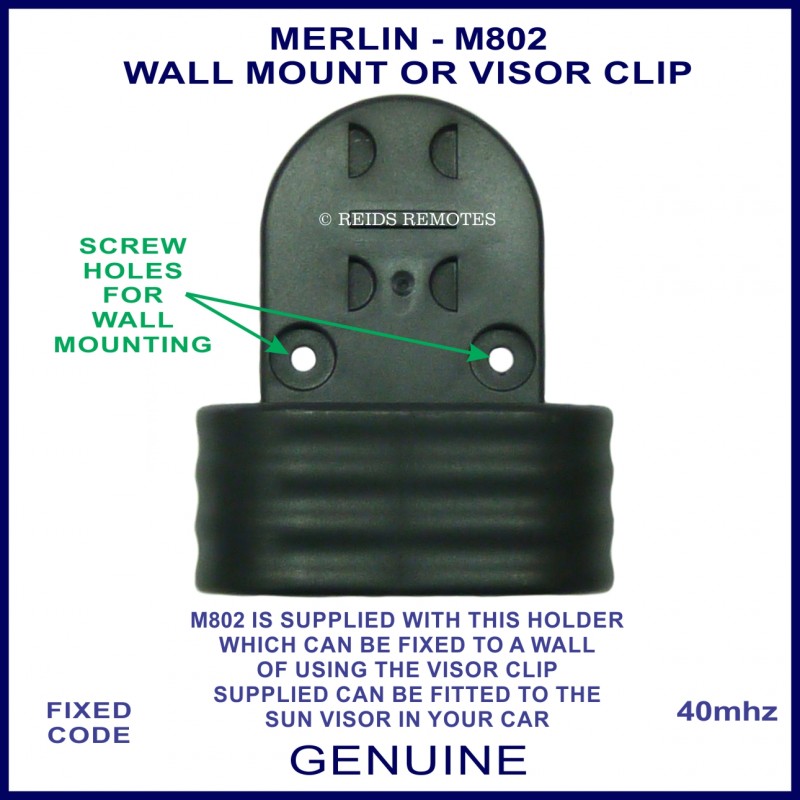

|Visor Clip Included||YES - INCLUDED|
|Dimensions in mm (L x W x D)||115 x 63 x 20|
|Battery Type||23AE - 12V|
This 23A 12 volt alkaline battery from GP High Voltage is used extensively in remote controls for garage door, swing & sliding gates, home security systems, car alarms, central locking and much more. One of, if not the most reliable 23A battery on the market GP is a very well respected brand. Other matching codes include: 23AE, A23, V23GA & MN21
The Merlin M-802 remote operates on 40Mhz and is distinctive with its large blue button. It is also quite large and so here we have a smller replacement for the bulky M802. The M802 small measures just 66 mm x 35 mm x 17 mm G51 - P33
